Research & publications

All of my work, in one place.

Papers, preprints, thesis chapters, and the hardware behind them. Published work links to the journal, with BibTeX; everything else is a pre-written email away.

Ph.D. thesis · In progress

Flexible spintronics under strain

How mechanical strain reshapes magnetism in thin films, and how to turn that physics into devices: strain-tunable anisotropy, transport under bending, and sensors that read magnetic field and strain at once. I share chapters and the current draft with collaborators and committees.

Labeled render of the flexible sensor layer stack
Publications & preprints

Ten works. Four published, five under review, one in preparation.

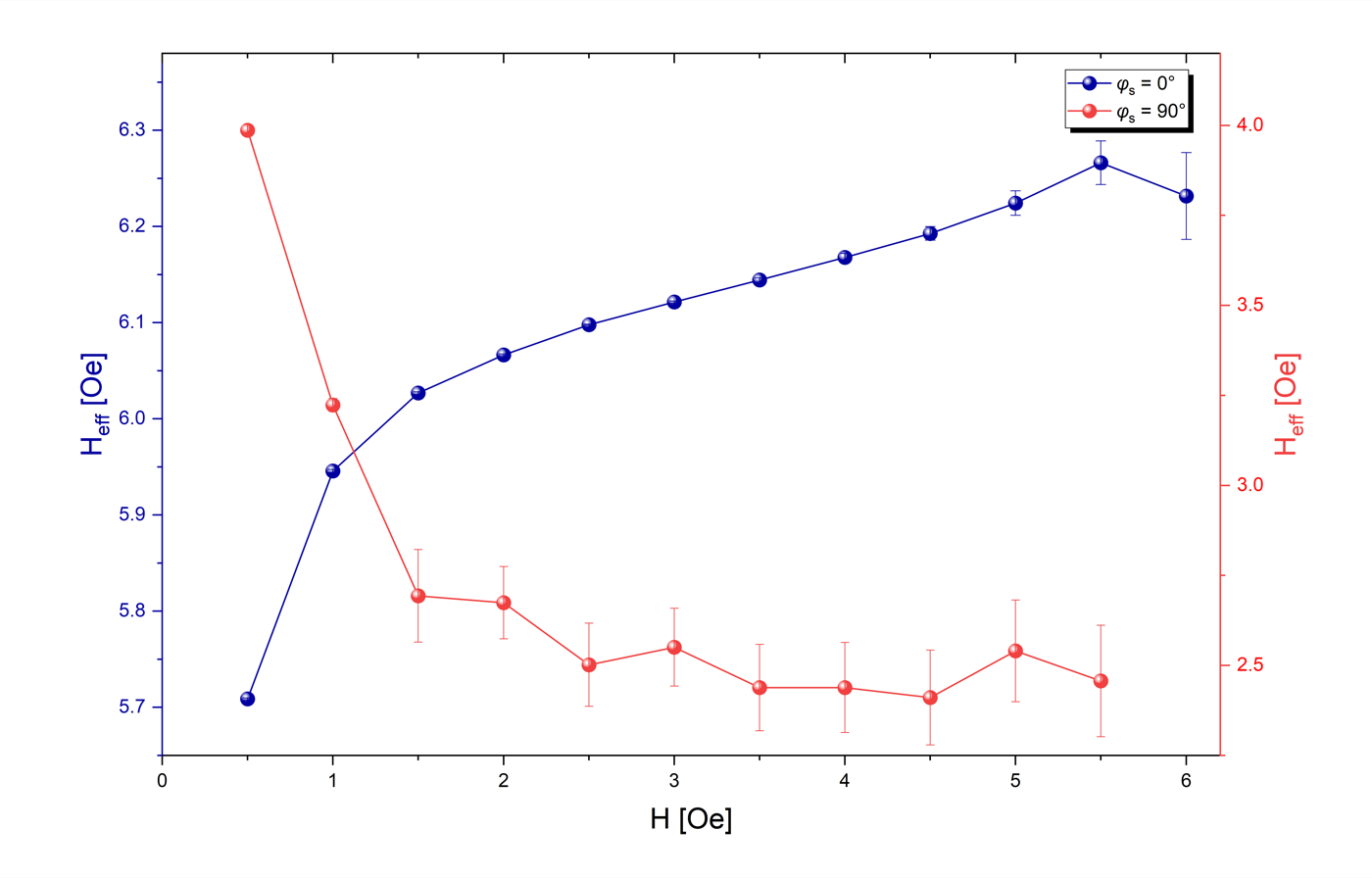

Effective anisotropy field versus applied field for parallel and orthogonal devices, shifting in opposite directions
Advanced Electronic Materials · Under review · First authorPreprint

Shape anisotropy in patterned soft ferromagnets is constant only above a crossover field

Shape anisotropy is usually treated as a fixed, geometry-derived constant. Measured field by field it holds only above a crossover field: below it the magnetization is non-uniform and the shape contribution falls short, biasing low-field device models by 8–12%. The decisive evidence needs no fit: devices patterned parallel and orthogonal to the growth easy axis shift in opposite directions.

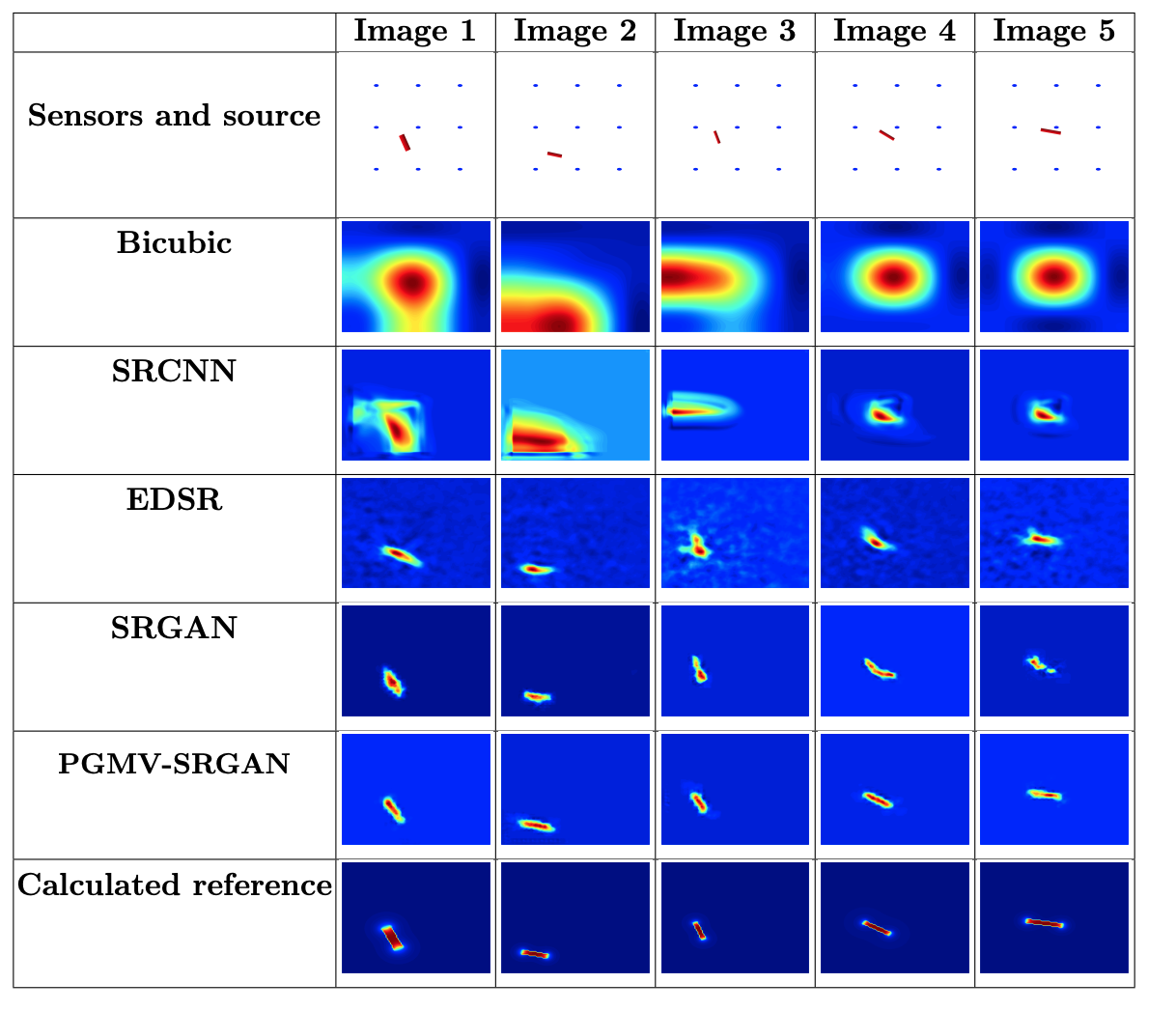

Comparison table of reconstructed magnetic sources for five test scenes: bicubic, SRCNN, EDSR and SRGAN baselines against PGMV-SRGAN and the calculated reference; PGMV-SRGAN recovers the source shape and orientation most faithfully
Array · Under reviewPreprint

Enhancing super-resolution fidelity through physics-guided multi-view conditioning

A physics-guided SRGAN reconstructs high-resolution magnetic field maps from sparse 3×3 sensor arrays, conditioned on the source’s physical parameters to stay physically consistent.

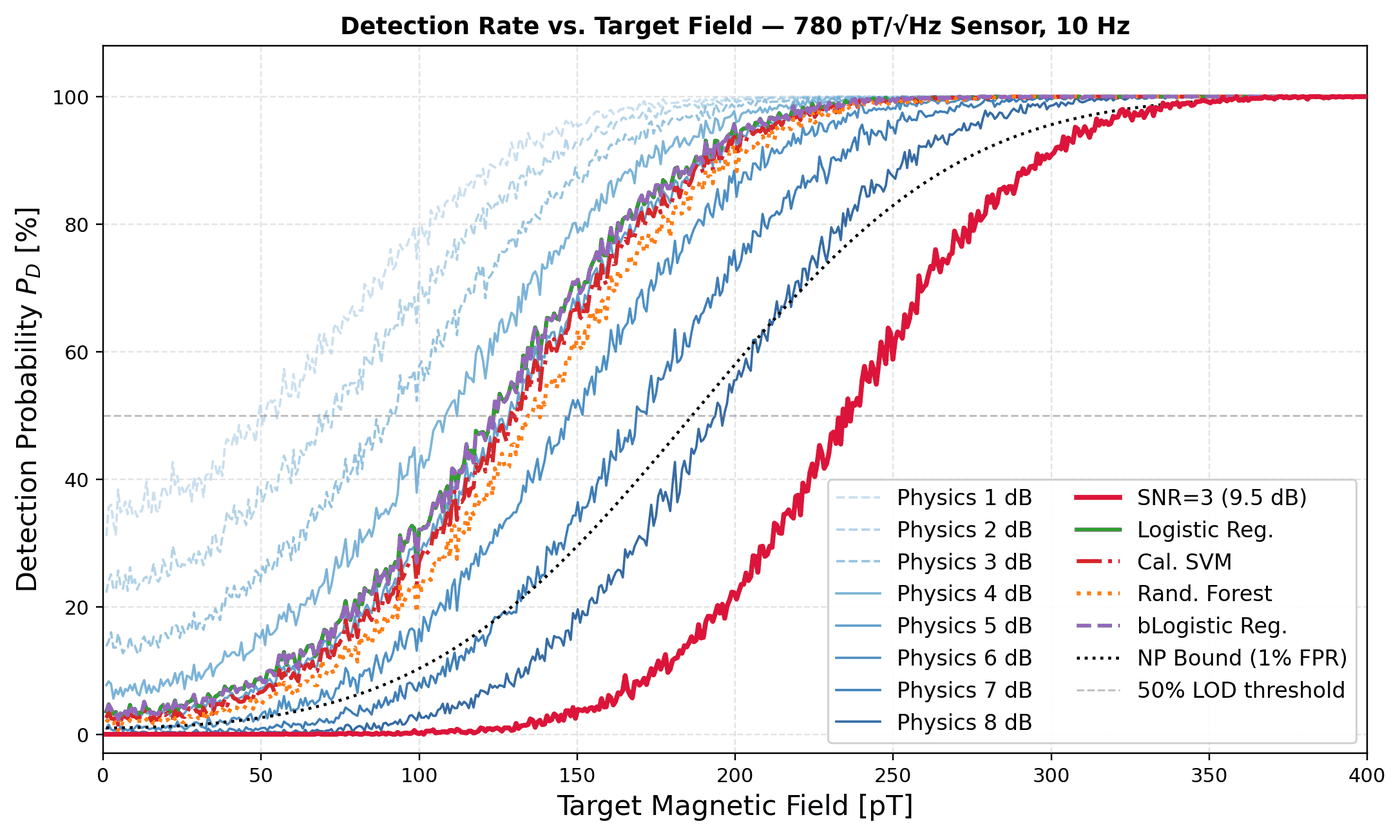

Detection probability versus target magnetic field for a 780 pT per root hertz sensor at 10 Hz, comparing physics-based detectors from 1 to 8 dB, a fixed SNR = 3 rule, four learned classifiers, and the Neyman-Pearson bound at 1% false-positive rate, against a 50% limit-of-detection threshold
IEEE Sensors Journal · Under reviewManuscript

Multi-objective optimization of magnetic anomaly detection with planar Hall effect sensors

Applies multi-objective optimization to magnetic anomaly detection with planar Hall effect sensors, weighing competing detection objectives against one another rather than tuning for a single figure of merit.

Schematic of growth and shape anisotropies combining in an elliptical sensor
Measurement · 2027 · First authorPublished

Enhanced magnetic resolution in elliptical planar Hall effect sensors via non-collinear anisotropy engineering

Patterning the ellipse orthogonal to the growth-induced easy axis makes the two anisotropies subtract instead of add, breaking the conventional resolution floor: the effective anisotropy field of a representative device dropped from 6.15 to 2.66 Oe, within 0.2 Oe of a parameter-free model.

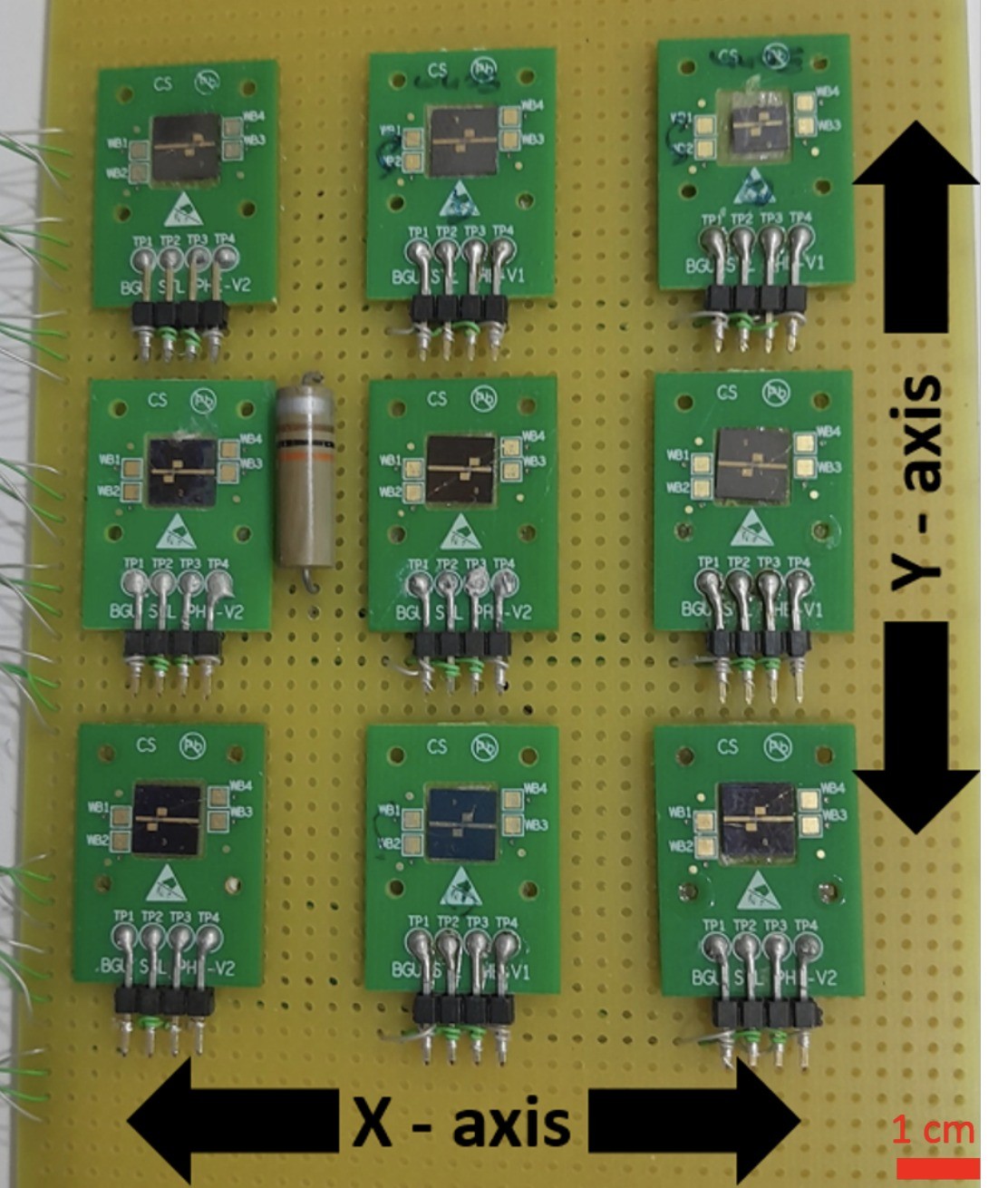

A 3x3 array of nine planar Hall effect sensors on a board, with X and Y axis labels and a 1 cm scale bar
Applied Sciences · 2025Open access

Magnetic source detection with sensor arrays and machine learning

A 3×3 array of elliptical PHE sensors plus a neural network reconstructs magnetic source maps. Reaching the same quality without learning would take more than fifty sensors.

Equivalent magnetic noise spectra from the extended-field-range paper
Sensors · 2024 · First authorEditor’s ChoiceOpen access

Planar Hall effect magnetic sensors with extended field range

Ellipse geometry tunes the anisotropy field from 12 to 120 Oe, a tenfold wider operating range, while every size remains a single magnetic domain that follows the Stoner-Wohlfarth model. My first first-author paper.

Flexible planar Hall effect sensor held in tweezers
Applied Physics Letters · 2023Published

Flexible planar Hall effect sensor with sub-200 pT resolution

A planar Hall effect magnetometer on 25 µm Kapton: equivalent magnetic noise below 200 pT/√Hz flat and below 400 pT/√Hz bent to a 10 mm radius. At publication, the best resolution reported for a flexible magnetic sensor.

The record

The publication record.

01
Advanced Electronic Materials · Under review · First author

Shape anisotropy in patterned soft ferromagnets is constant only above a crossover field

02
Array · Under review

Enhancing super-resolution fidelity through physics-guided multi-view conditioning

03
IEEE Sensors Journal · Under review

Multi-objective optimization of magnetic anomaly detection with planar Hall effect sensors

04
Sensors and Actuators Reports · Under review · First author

Planar Hall effect sensor in the high-field regime: sub-microradian resolution of the in-plane field direction and microtesla resolution of the perpendicular field

D. Lahav, M. Schultz, A. Grosz, L. Klein

05
NDT & E International · Under review

Detection of subsurface defects in aluminum plates with a scanning eddy-current testing system based on a single planar Hall effect sensor

I. Forkosh, D. Lahav, M. Schultz, L. Klein

06
In preparation · First author

Temperature-drift compensation of planar Hall effect sensors from their longitudinal resistance

D. Lahav, M. Schultz, A. Grosz, L. Klein

07
Measurement · 2027 · First author

Enhanced magnetic resolution in elliptical planar Hall effect sensors via non-collinear anisotropy engineering

D. Lahav, M. Schultz, A. Grosz, L. Klein

08
Applied Sciences · 2025

Magnetic source detection using an array of planar Hall effect sensors and machine learning algorithms

M. Vizel, R. Alimi, D. Lahav, M. Schultz, A. Grosz, L. Klein

09
Sensors · 2024 · First authorEditor’s Choice

Planar Hall effect magnetic sensors with extended field range

D. Lahav, M. Schultz, S. Amrusi, A. Grosz, L. Klein

10
Applied Physics Letters · 2023

Flexible planar Hall effect sensor with sub-200 pT resolution

H. Nhalil, D. Lahav, M. Schultz, S. Amrusi, A. Grosz, L. Klein

From the lab

The hardware behind the plots.

Six-step render of the sensor fabrication process
Six steps from bare wafer to diced sensor. Render of the actual fabrication process.
Photo of a fabricated elliptical planar Hall effect chip
A fabricated elliptical planar Hall effect chip.
Helmholtz coil pair inside a magnetically shielded chamber
Helmholtz coils inside the shielded measurement chamber.

Need something that isn't listed?

Datasets, fabrication notes, teaching material. If I have it and I can share it, I will.
